Manure Management
Keep your shed hygienic as possible with our manure management solutions. From handheld to hydraulics, we got you covered!
ALFCO Hydraulic scrapers
The Alfco Slurry Scraper will scrape cubicle and feed passages of various widths. Up to six passages can be operated on one powerpack and control panel.
One Rambox is installed at the end of each passage and a double acting ram moves the central draw bar back and forth. The scraper is fitted with a mechanism that moves it forward with each stroke. At the end of the track the scraper automatically reverses to its parking position, where a switch turns off the hydraulic oil supply. Power Unit
- Â Special Heavy Duty hydraulic pump with high efficiency low noise level
- Custom Made hydraulic oil filter, to reduce any dirt in the oil and to increase the life of the hydraulic system
- Soft turning changeover valve gives smooth operation with no disturbance to the cows
- Easy adjustable turning pressure for individual plant control
Control Panel
- Â Manual or fully automatic operation
-  Manual operation – Each Passage can be started manually and when the scraper completes its cycle it returns to the home position and parks.
- Automatic operation – Each passage will start automatically at preselected intervals using a 24hr clock and when the scraper completes its cycle it returns to the home position and parks.
Passage Scraper Blade
- Robust all galvanised construction and animal friendly design
- Built in safety trip mechanism ensures that the scraper returns to its parking position if passage is blocked.
- Floating blades give excellent cleaning and first class hygiene results.
- Blade constructed from 12mm steel with 20mm heels for long life.
Rambox
- Long and short rambox available for maximum flexibility
- Unique parking switch for positioning the scraper at the end of each passage
- All Galvanised
- Separate cylinder cover facilitated inspection and easy service
- Glanded Junction Box
Track
- Cow friendly design with curved notches
- 5mm all galvanised steel after manufacturing.
- Guide bracket every 1500m
Undertrack Ram Assembly
• Allows blade to park close to wall, resulting in cleaning of full passage
• Causes no obstruction in passage or doorway
• Suitable for all types of shed designs
• Unique sensor parking system.
ALFCO Rope Scraper
Safe, quiet and economical scraper system designed to clean efficiently cubicle and feed passages of various widths and lengths
The system operates using two winches mounted at one end of the cubicle house The winches operate alternatively using a high quality dynema rope to move the scraper blades up and down the passages. Can clean up to 120 metres.
Control Panel
- Can be easily programmed using our user-friendly keypad.
- Works manually or can be set to come on automatically at present intervals.
- If it detects an animal lying on the passage it will reverse and stop. It will then go forward again after 1 min.
- If it detects an animal again it will reverse and shut down until it is manually restarted
- Three power settings (1. For Motor start up, 2. Normal running power, 3. Cow down protection)
- By using the invertor, we have maximum control over our scrapers. This allows the motor 30 seconds to reach its maximum speed on start-up resulting in reduced wear on the gearbox and rope.

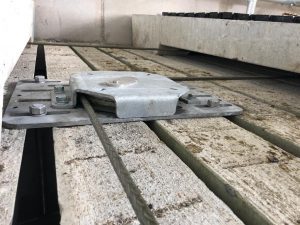

Corner Pulleys
- Pulley Housing, made from 6mm galvanised steel.
- Can be floor or wall mounted.
- Pulley made from acetal.
- Rotates on a stainless-steel pin.
- No need to grease and will have very little wear
Drive Winches
- Made from heavy gauge hot dipped galvanised steel.
- Can be floor or wall mounted.
- Water proof sensors placed in the drum are used to control speed and parking
- Scraper runs at a constant speed of four meters a minute but slows down as it approaches the slatted tank allowing more time for the slurry to flow away.
- The sensors detect a marker placed in the rope for accurate parking.
- This is backed up with a counter that counts the number of revolutions on the winch drum.
- Programmed to gradually slow down when parking at the end of the cleaning cycle resulting in no catapult action to injure or frighten animals.
- Three motor and gearbox options depending on length of passages.
Rope
- 12 mm dynema rope.
- Minimum breaking load 16.4 Tons.
- No stretch characteristics.
- Extremely flexible and lightweight.
- Animal friendly
Scraper Blade
- Robust all galvanised construction and animal friendly design.
- Blade constructed from 12mm steel with 20mm heels for long life.
- Floating blades give excellent cleaning and first class hygiene results.
- Rope can be easily attached and adjusted.
DeLaval Hand Scrapers
An Impact-resistant hand held scraper for stalls and sheds.
With its resilient design and composure, the DeLaval hand held scraper can work for longer with its detachable head. Allowing you to keep your shed clean by just attaching a new durable head!
